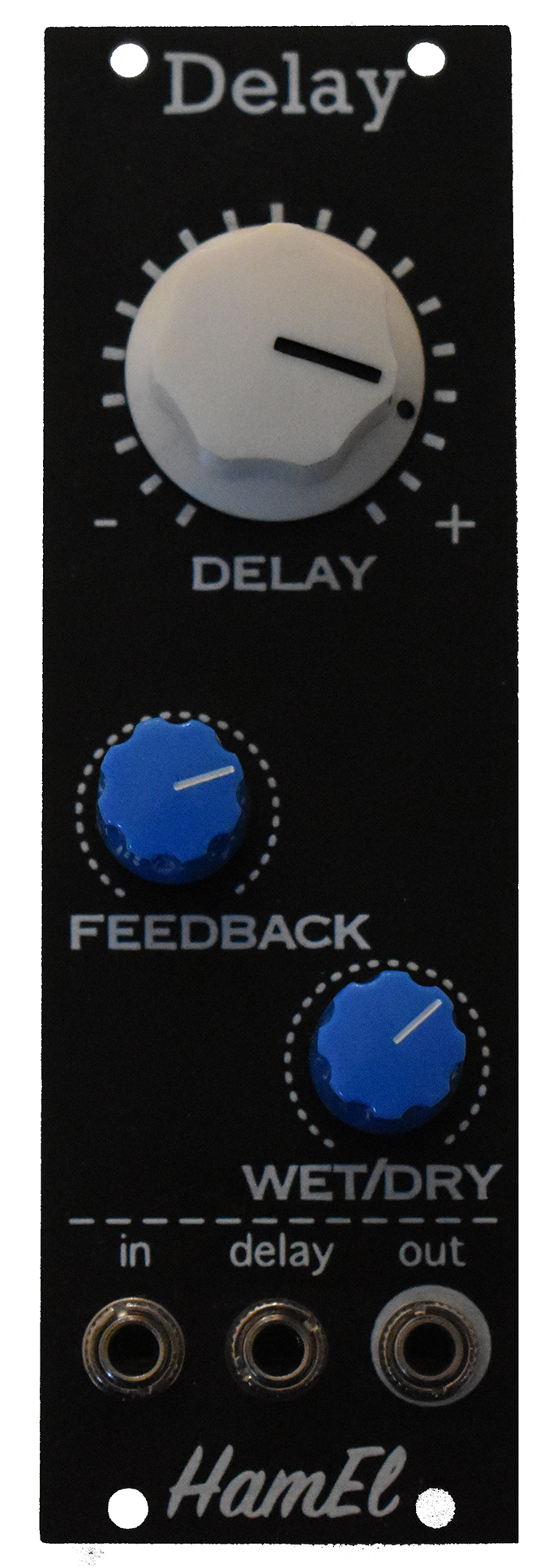

Delay - Eurorack Analogue Module

The Hampshire Electronics Delay is a delay module in the popular Eurorack format.

The Delay uses the well known PT2399 IC to produce its signature sound.

The key details of the Delay are as follows:

• 8HP Wide Eurorack module with thin profile (20mm deep from faceplate)
• Controls designed and laid-out with performance in mind
• Tough yet light composite faceplate
• Diode protected power input
• Classic PT2399 delay, from 30ms to 340ms of clean delay and significantly more with lo-fi break-up
• The module will take the PT2399 as far as it will go in terms of delay length
• Delay time adjustment
• Feedback adjustment
• Wet/dry adjustment
• CV input for delay time in the standard 0v to 5v range
• 27ma @ +12v
• 8ma @ -12v

Click here to download the Delay Module Instructions and Details
