Hampshire Electronics

Low Pass VCF - Eurorack Analogue Voltage Controlled Filter Module

Low Pass VCF - Eurorack Analogue Voltage Controlled Filter Module

Regular price £50.00 GBP
Regular price Sale price £50.00 GBP
Sale Sold out
Tax included.

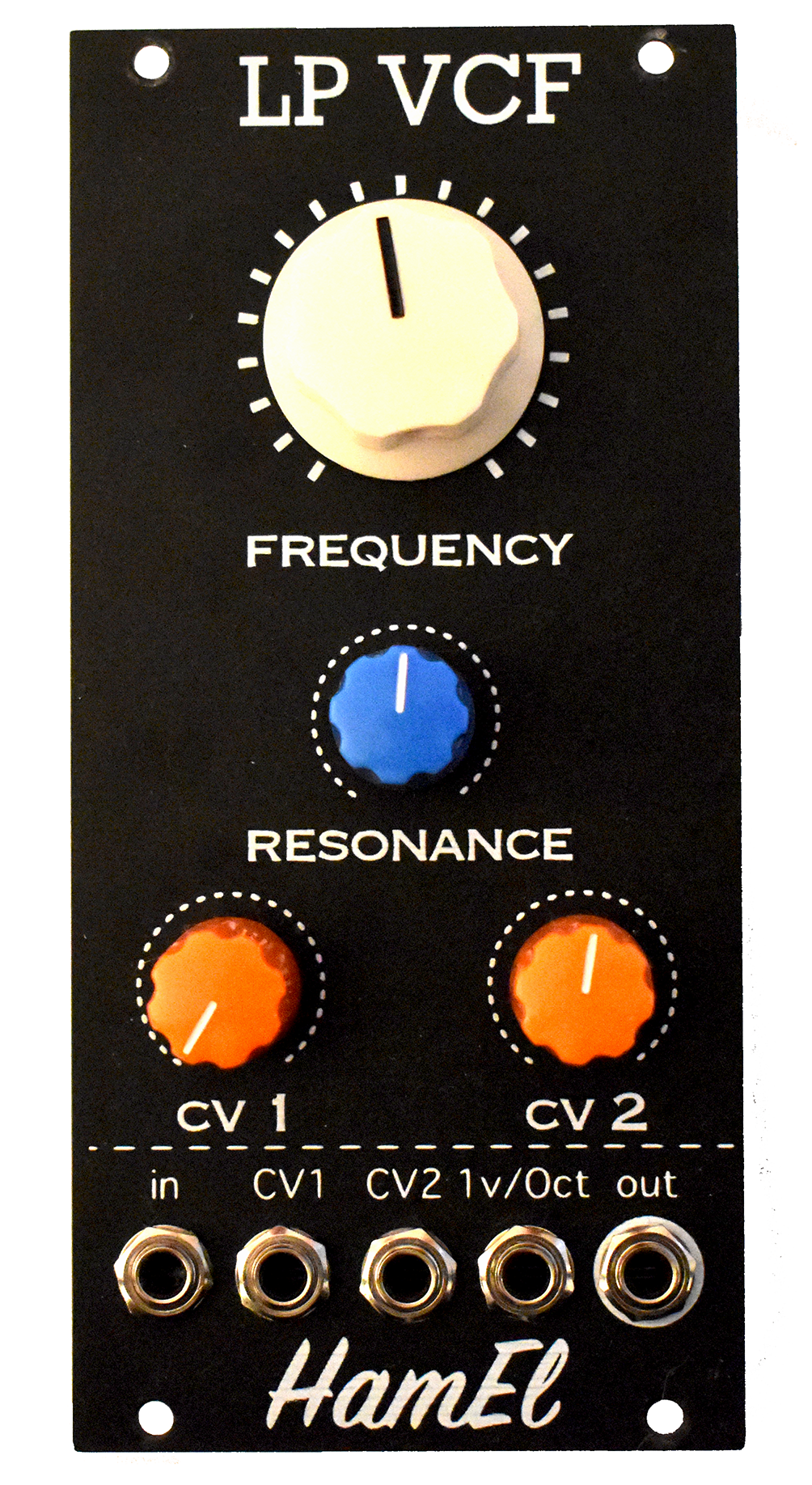

The Hampshire Electronics Low Pass VCF is a 100% analogue voltage-controlled filter in the popular Eurorack format.

The VCF features a low pass (12db) resonant filter based on the classic MS-20 state-variable filter design. The filter has two CV inputs and a tracking input for 1v per octave pitch signals.

The LP filter self-oscillates at high resonance settings and, due to its high performing matching transistor pairs, can also be used as a sine-wave voltage-controlled oscillator (VCO).

The key details of the VCF are:

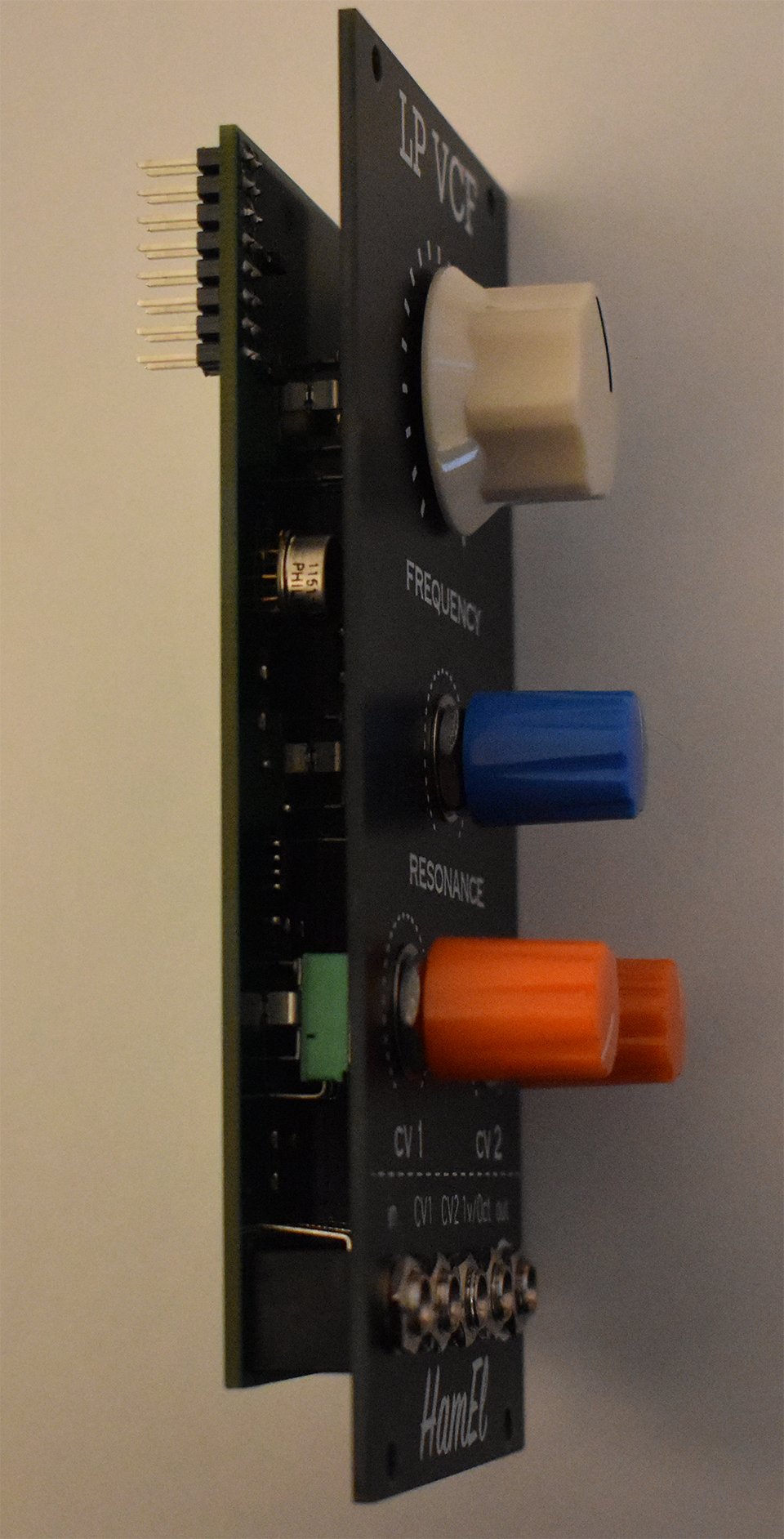

  • 12HP Wide Eurorack module with thin profile (20mm deep from faceplate)
  • Controls designed and laid-out with performance in mind
  • 100% analogue circuitry
  • Tough yet light composite faceplate
  • Provides a resonant 12db LP filter based on the classic MS-20 design
  • Uses two highly log-conformant LS-358 matched transistor pairs
  • The filter self-oscillates, enabling usage as a sine-wave VCO
  • Two filter cut-off CV inputs with attenuator pots
  • Tracking CV input with 1v/Oct tracking

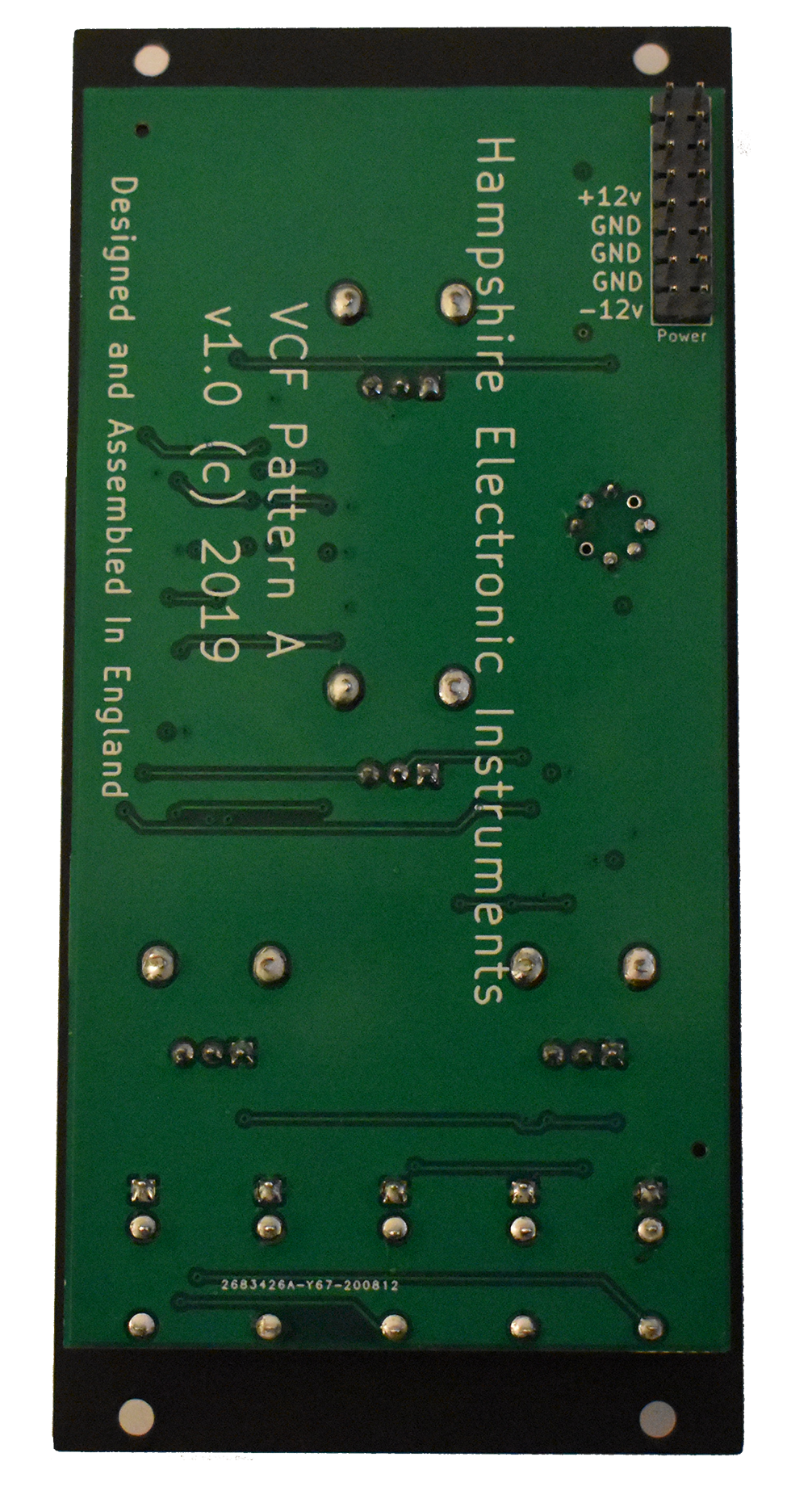

  • Diode protected power input
  • 10ma @ +12v
  • 10ma @ -12v



    Click here to download the Low Pass VCF Instructions and Details
